What Is the Contour Interval of the Map Exercise 29

The numbers 25 and 36 are related to the Public Land Survey System. Read through Appendix C in your text for additional background.

Solved Exercise 29 Us Geological Survey Topographie Maps Chegg Com

Magnetic North lies in what direction relative to geographic North if the magnetic declination is 14 degrees East.

. Estimate elevations between contour lines to the nearest half-contour interval. The peak is normally considered to be located at half the interval distance. A contour line on a map connects points that are at the same distance above or below sea level or.

Widely separated contour lines indicate a gentle slope. 20 feet 100 2. What is the elevation of the highest contour line at the top of the eastern Twin Butte.

North is to the top of the map. F State the highest and the lowest spot. Largest scale map printed.

Possible contours include 500 520 540 560 580 600 620 etc. What is the contour interval of the map. On the map draw contour lines for the 780-ft 760-ft and 740-ft elevations.

Contour interval for a steep slope in a hilly area is generally greater. Maps changing topographic contour intervals. What is the contour interval of the map.

Map and Compass Activities Directions. Learn vocabulary terms and more with flashcards games. Contour interval means the difference between two consecutive contour lines.

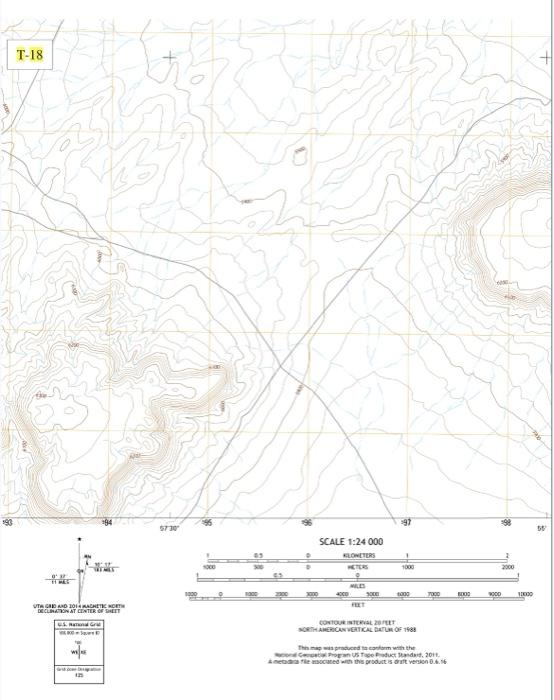

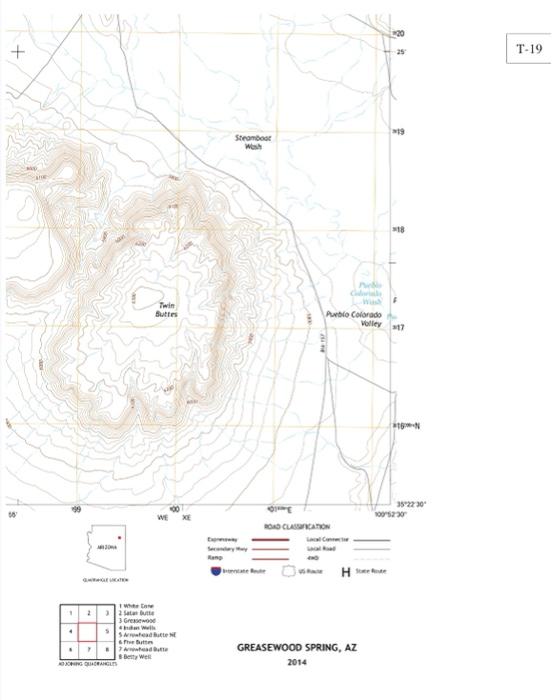

The contour interval can be easily calculated by finding the elevation difference. The given point 537 therefore must lie between the 520 and 540 contours contours a and b. __Valeria Lopez_____ EXERCISE 29 PROBLEMS PART I The following questions are based on the lower right southeast corner of the Greasewood Spring Arizona quadrangle Maps T-18 and T-19 shown in color in the back of the Lab Manual.

Give the correct answer or letter for each question. The numbers 25 and 36 are related to the Public Land Survey System. Map Reading II Revision Date.

The North end of the compass needle ALWAYS points toward what direction. Contour interval of the given toposheet is 20 metres. Geolab 9 - Exercise Using a blank sheet of paper trace Map 1.

29 MSL 102 Lesson 02. The intervals are increasing therefore the contours indicate a hill. The size of the contour interval depends on the amount of elevation change across a map.

The difference in elevation between 2 contour lines. Mplete EXERCISE 29 PROBLEMS-PART I The following questions are based on the lower right southeast corner of the Greasewood Spring Arizona quadrangle Maps T-18 and T-19 shown in color in the back of the Lab Manual. How many feet are there in an inch on a map if the scale is 112000.

Be sure you set your compass before you begin. 1 inch 2000 feet. It should be remembered that the contour interval for a particular map is Constant.

What Is The Contour Interval Of The Map. Because the stream flows south contour a which lies downstream of contour b must be the lower of the two. You should review a brief power point presentation about topographic maps A Topographic map shows the variations in elevation of the area represented on the map with contour lines.

The contour interval of the map is 25 feet and the index contours are every 100 feet. Answer the following questions using all of the knowledge you have learned so far. What is the contour interval of the map.

From the contour map a profile can be drawn of the terrain. A graphic scale for measuring horizontal distances is shown below the map. What is the contour interval of the map.

What is the difference in elevation between index contours. What is the contour interval of the map. Mplete EXERCISE 29 PROBLEMS-PART I The Following Questions Are Based On The Lower Right southeast Corner Of The Greasewood Spring Arizona Quadrangle Maps T-18 And T-19 Shown In Color In The Back Of The Lab Manual.

Lines AB and CD are reference lines on the map. What do the dashed blue. _____ EXERCISE 29 PROBLEMS PART I The following questions are based on the lower right southeast corner of the Greasewood Spring Arizona quadrangle Maps T-18 and T-19 shown in color in the back of the Lab Manual.

Look carefully at the sample map. The questions in this exercise are based on this contour line map with elevations shown in feet. Learn vocabulary terms and more with flashcards games and other study tools.

Start studying ex2829 and 30. The contour interval is 5 feet and the highest point elevation 760 feet is located near the center of the map. 10 m 15 m etc.

Declination for this map is 16 east. In flat or gently sloping areas the contour interval is a low number like 10 or 20 feet whereas in very steep areas it is a high number like 100 feet or more. The contour interval of the map is 25 feet and the index contours are every 100 feet.

The next two maps will illustrate some additional interpretations of contour lines. Exercise 29 1. 20 Feet 100 2.

What is the contour interval of the map. What is the Bruton compass used to measure. The next two maps will illustrate some additional interpretations of contour lines.

700 800 X X 700. The numbers 25 and 36 are related to the Public Land Survey System. 025 m 05 m 075m.

What is the elevation of the highest contour line at the top of the eastern Twin Butte. What do the dashed blue lines represent. Contour intervals for flat country are generally small e g.

Example 2 - Draw a profile showing the elevations of the contours. The contour interval is map specific. Up to 24 cash back 18Base your answer to the following question on the map below which shows elevations in feet at various points.

Reference point from which elevatios are measured. Contour interval of the given toposheet is 20 metres. What is the difference in elevation between index contours.

What do the gray lines around and between the Twin Buttes represent. Ii the scale of the map iii the purpose of the survey. This can be calculated by using the elevation shown for two contour lines and dividing the difference in elevation by the number of lines inbetween them or Usually all topographic maps will have the contour.

The contour interval is 20. Start studying Contour Lines US geological survey topographic maps topographic profiles ch28 29 30. Assume that the top of a hill is one-half-contour.

30 November 2012 Determine Hilltop Elevation To determine the elevation to a hilltop add one-half the contour interval to the elevation of the last contour line. The contour interval is the difference in elevation between two contour lines. Streams are shown with dashed lines.

Largest scale map printed. The southern part of the map has contour lines representing elevations at 20-foot intervals.
